2CDG110061R0011

Part Number: 2CDG110061R0011
2CDG110061R0011
Manufacturer
ABB
Part number
2CDG110061R0011
Category

Product Information

Extended Description

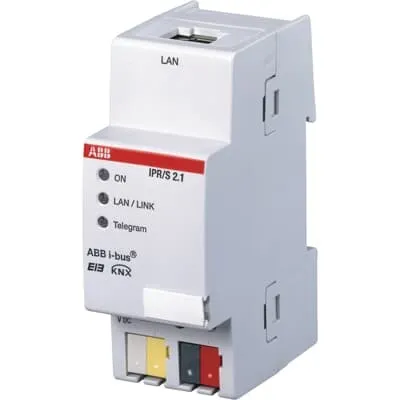

2CDG110061R0011 ABB: The IP Router is the interface between EIB/KNX networks and IP networks and routes telegrams as a line or area coupler using the LAN for the rapid exchange of telegrams between the lines/areas. Together with the ETS 3.0f (or higher), the IPR/S can program EIB/KNX devices via the LAN. The device uses the KNXnet/IP protocol (Tunneling and Routing) defined by the KNX Association. Its IP Address can be fix, assigned via DHCP or AutoIP. For operation an additional 10…30V DC supply is necessary.
Instructions and Manuals
Installation and Operating Instructions (.PDF) IPR/S2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] IPx/S2.1 | Technical Data (.PDF) [EN] IPR/S2.1
Communication Interface
Ethernet
Number of LEDs
3
Compatible Bus Systems
KNX (TP) | KNX (IP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
PoE
Auxiliary Voltage AC/DC
12 ... 30 V DC
Power Loss
1.9 W
Surface Finishing
Matt
Housing Material
Plastic
RAL Number
RAL 7035 - Light Grey
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.085 kg
Replacement Product ID (NEW)
2CDG110175R0011
E-Number (Sweden)
1750023
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) IPR/S2.1
KNX Certificate
KNX Certificate (.PDF) [EN] IPR/S2.1
ETIM 9
EC000674 - Interface for bus system
eClass
V11.0 : 27143102
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
