2CDG110066R0011
Part Number: 2CDG110066R0011
Product Information
Extended Description

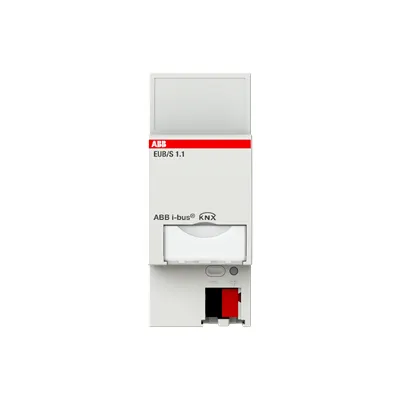

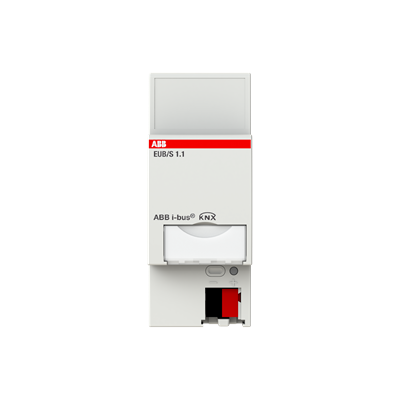

2CDG110066R0011 ABB: Monitors up to 100 bus devices in KNX systems, which can be divided into 5 groups. The devices are monitored to ensure their presence and minimum functionality (send and receive). Monitoring can be undertaken based on the physical address or the group address. A total of four different monitoring modes are available. No additional power supply required, the device is powered from KNX bus.
Instructions and Manuals
Installation and Operating Instructions (.PDF) EUB/S 1.1
Wiring Diagram
9AKK108469A6684
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] EUB/S 1.1 | Product Information (.PDF) [EN] EUB/S 1.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Power Loss
0.3 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.095 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2818985
E-Number (Norway)
4544355
E-Number (Sweden)
1757030
E-Number (Switzerland)
405680205
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) EUB/S 1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) EUB/S 1.1
KNX Certificate
KNX Certificate (.PDF) [EN] EUB/S 1.1
ETIM 9
EC000676 - Logic component for bus system
eClass
V11.0 : 27143103
UNSPSC
32151705
IDEA Granular Category Code (IGCC)
3567 >> PLC function/technology module
Object Classification Code
A
