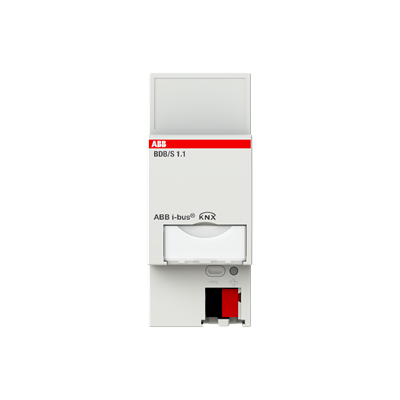

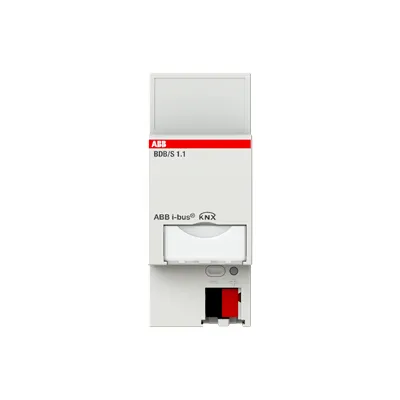

2CDG110067R0011
Part Number: 2CDG110067R0011
Product Information
Extended Description
2CDG110067R0011 ABB: It detects local operation cycles and operating hours to plan the maintenance or durability evaluation of the devices. For each of the 35 channels to be monitored, limit values can be set and a message sent if this limit is exceeded. The logging of operating hours can be predetermined for the total or remaining time. These values can be modified via communication objects. No additional power supply required, the device is powered from KNX bus.
Instructions and Manuals
Installation and Operating Instructions (.PDF) BDB/S 1.1
Wiring Diagram
Connection diagram (.eps) [XX] BDB/S 1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] BDB/S 1.1 | Technical Data (.PDF) [EN] BDB/S 1.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Power Loss
0.3 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815109
E-Number (Sweden)
1738581
E-Number (Switzerland)
405680305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BDB/S 1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) BDB/S 1.1
KNX Certificate
KNX Certificate (.PDF) [EN] BDB/S 1.1
ETIM 9
EC000676 - Logic component for bus system
eClass
V11.0 : 27143103
UNSPSC
32151705
IDEA Granular Category Code (IGCC)
3567 >> PLC function/technology module
Object Classification Code
A
