2CDG110070R0011
Part Number: 2CDG110070R0011
Product Information
Extended Description

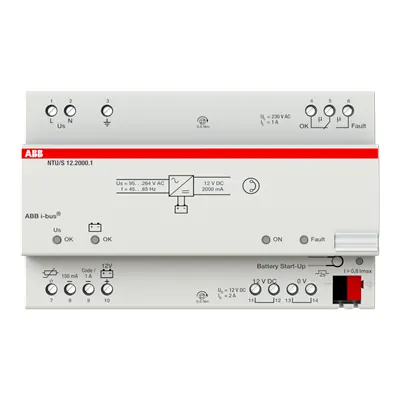

2CDG110070R0011 ABB: delivers sufficient power for all types of demanding applications with a buffered output voltage of 12 V DC (SELV) and a maximum output current of 2 A. Operating malfunctions of the power supply are signalled via a changeover contact and can be sent for evaluation purposes. Up to two 12 V DC sealed lead-acid batteries (gel cell) can be connected in parallel with the power supply, in conjunction with the KS/K 4.1 and KS/K 2.1 cable sets, or the AM/S 12.1 battery module.
Instructions and Manuals
Installation and Operating Instructions (.PDF) NTU/S12.2000.1
Wiring Diagram
Connection diagram (.eps) [XX] NTU/S 12.2000.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] NTU/S12.2000.1
Number of Outputs
1
Number of LEDs
1
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Output Voltage (Uout)
12 V DC
Buffer Voltage
No
Output Current Maximum (Iout)
2 A
Power Loss
8 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.379 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
E-Number (Finland)
2815290
E-Number (Norway)
4546689
E-Number (Switzerland)
405800405
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) NTU/S12.2000.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) NTU/S12.2000.1
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4130 >> DC-power supply
Object Classification Code
A
