2CDG110071R0011
Part Number: 2CDG110071R0011
Product Information
Extended Description

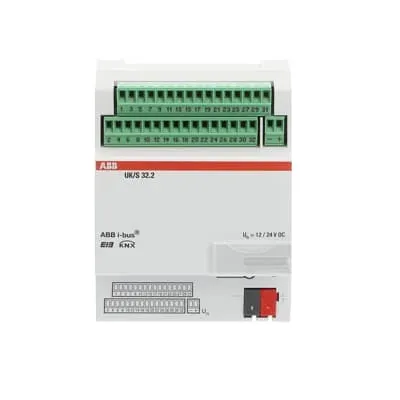

2CDG110071R0011 ABB: To connect push buttons or signal lamps to the ABB i-bus®, e.g., in an operating/display tableau. It has 32 channels which can be freely parameterised as inputs/outputs using the ETS software. Requires an external 12/24 V DC auxiliary power supply.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] UK/S32.2
Wiring Diagram
9AKK108469A6734
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] UK/S32.2
Special Functions
Switching
Sub-Function
LED controlling
Number of LEDs
1
Maximum Number of Switching Outputs
32
Number of Input Channels
32
Number of Output Channels
32
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Current Type
DC
Rated Operational Voltage
10 ... 30 V DC
Auxiliary Voltage AC/DC
10 ... 30 V DC
Input Voltage (Uin)
12 ... 24 V DC
Input Voltage Type
DC
Output Voltage (Uout)
12 V DC | 24 V DC
Maximum Switching Current
0.08 A
Maximum Switching Power
2 W
Power Loss
2.5 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.15 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815191
E-Number (Norway)
4544022
E-Number (Sweden)
1750206
E-Number (Switzerland)
405660185
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) UK/S32.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
ae570c37-a181-40d7-beed-71b765fe3d33 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) UK/S32.2
KNX Certificate
KNX Certificate (.PDF) [EN] UK/S32.2
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
UNSPSC
39122221
Object Classification Code
A
