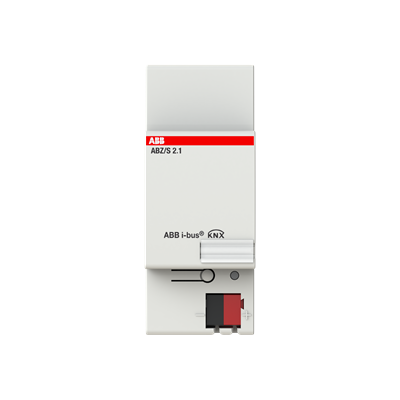

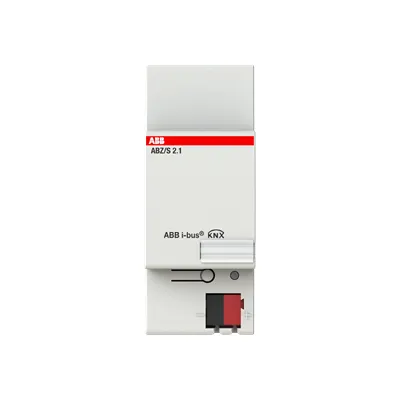

2CDG110072R0011
Part Number: 2CDG110072R0011
Product Information
Extended Description
2CDG110072R0011 ABB: It provides a yearly time clock program with 15 daily routines (800 switching events), a weekly schedule and allowance for 100 special days. Additionally, the unit can control up to 300 participants in 30 macro groups, that can be triggered using a single command. In this way, each time controlled switching event can cause a series of actions. The switching times can be modified with the free PZM software without using ETS.
Instructions and Manuals
Installation and Operating Instructions (.PDF) ABZ/S 2.1
Wiring Diagram
Connection diagram (.eps) [XX] ABZ/S 2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] ABZ/S 2.1
Number of Channels
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Options Provided
Daily program | Weekly program | Annual program
Manual Operation
No
Number of Batteries
0
Terminal Type
Bus Connection
Voltage Range
KNX
Power Loss
0.3 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815105
E-Number (Norway)
4544170
E-Number (Sweden)
1750095
E-Number (Switzerland)
405450105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) ABZ/S 2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) ABZ/S 2.1
KNX Certificate
KNX Certificate (.PDF) [EN] ABZ/S2.2
ETIM 9
EC000689 - Time switch for bus system
eClass
V11.0 : 27143140
UNSPSC
39121801
Object Classification Code
A
