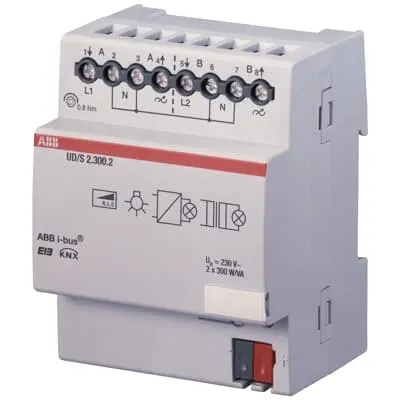

2CDG110074R0011
Part Number: 2CDG110074R0011
Product Information
Extended Description
2CDG110074R0011 ABB: For switching and dimming of incandescent lamps, 230 V halogen lamps or low-voltage halogen lamps which are powered by wound or electronic transformers (automatic load detection). Output power 2 x 300 VA or 1 x 500 VA up to 45 °C ambient temperature at a minimum load of just 2 W. Both outputs are independent of one another and can be supplied by different phases. Comprehensive application program with scene and time functions.
Instructions and Manuals
Installation and Operating Instructions (.PDF) UD/S2.300.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] UD/S2.300.2
Number of Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Rated Operational Voltage
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Output Voltage (Uout)
230 V AC
Rated Frequency (f)
50 / 60 Hz
Load Type
Universal and LED Retrofit | LEDi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage
Power Loss
4.5 W
Color
light grey
Width in Number of Modular Spacings
60.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.225 kg
Built-In Depth (t2)
64.5 mm
Replacement Product ID (NEW)
2CKA006197A0053
E-Number (Finland)
2815190
E-Number (Sweden)
1751039
E-Number (Switzerland)
405449725
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) UD/S2.300.2
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) UD/S2.300.2
KNX Certificate
KNX Certificate (.PDF) [EN] UD/S2.300.2
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
Object Classification Code
A
