2CDG110079R0011
Part Number: 2CDG110079R0011
Product Information
Extended Description

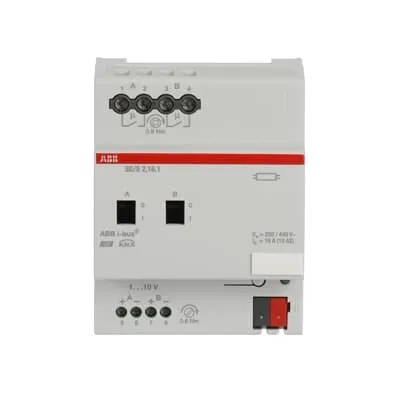

2CDG110079R0011 ABB: MDRC Devices for switching and dimming of 2, 4 or 8 independent groups of luminaries with electrical ballasts and 1-10V control inputs. Per channel a potential free relay can be switched on or off via the ABB i-bus® or manually. Manual and visual operation is included. A power supply is not necessary.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SD/Sx.16.1
Wiring Diagram
Connection diagram [EN] 6197_22_23_24
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SD/Sx.16.1 | Product Information (.PDF) [EN] SD/Sx.16.1
Number of Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Rated Operational Voltage
110 ... 230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Maximum Switching Current
16 A
Maximum Control Current DC
100 mA
Rated Frequency (f)
50/60 Hz
Load Type
Electronic ballast 1-10 V | Universal | Fluorescent lamp
Power Loss
2.6 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.18 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815179
E-Number (Norway)
4544156
E-Number (Sweden)
1750168
E-Number (Switzerland)
405442205
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SD/S2.16.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SD/S2.16.1
KNX Certificate
KNX Certificate (.PDF) [EN] SD/S2.16.1
ETIM 9
EC001094 - Dimming actuator for bus system
eClass
V11.0 : 27143123
UNSPSC
39121801
Object Classification Code
A
