2CDG110083R0011
Part Number: 2CDG110083R0011
Product Information
Extended Description

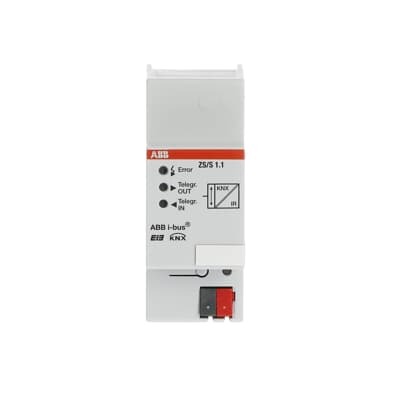

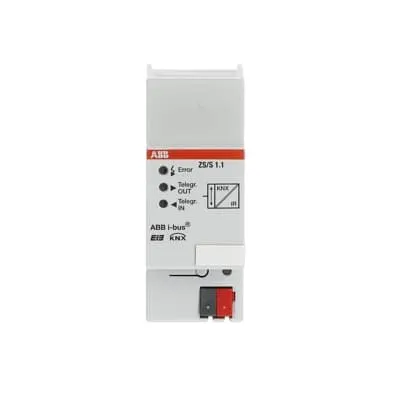

2CDG110083R0011 ABB: The Meter Interface Module receives data and values from energy meters and sends them via KNX. These data can be used e.g. for visualisation, energy optimizing, billing and monitoring purposes. The device is equipped with an infrared interface to connect ABB energy meters such as A-Series, B-Series, DELTA and ODIN.
Instructions and Manuals
Installation and Operating Instructions (.PDF) ZS/S1.1
Wiring Diagram
9AKK108469A6741
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] ZS/S1.1
Maximum Number of Switching Outputs
0
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Connection Type
Direct
Manual Operation
No
Number of Batteries
0
Voltage Range
KNX
Auxiliary Voltage AC/DC
KNX
Power Loss
0.25 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815203
E-Number (Norway)
4544643
E-Number (Sweden)
1750301
E-Number (Switzerland)
405830505
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) ZS/S1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) ZS/S1.1
KNX Certificate
KNX Certificate (.PDF) [EN] ZS/S1.1
ETIM 9
EC001102 - Energy management for bus system
eClass
V11.0 : 27143126
UNSPSC
39121803
Object Classification Code
A
