2CDG110085R0011
Part Number: 2CDG110085R0011
Product Information
Extended Description

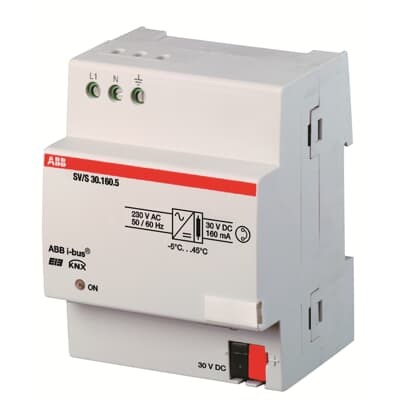

2CDG110085R0011 ABB: Power supply with integrated choke for production and monitoring of the ABB i-bus® system voltage. The power supply is connected to the bus line via a bus connecting terminal.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SV/S30.160.5
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SV/S30.160.5
Number of Outputs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Voltage Range
230 V AC
Output Voltage (Uout)
30 V DC
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
65 mm
Product Net Depth / Length
90 mm
Product Net Weight
0.218 kg
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SV/S30.160.5
ETIM 9
EC000675 - Power supply for bus system
eClass
V11.0 : 27143114
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4127 >> Power supply units
Object Classification Code
A
