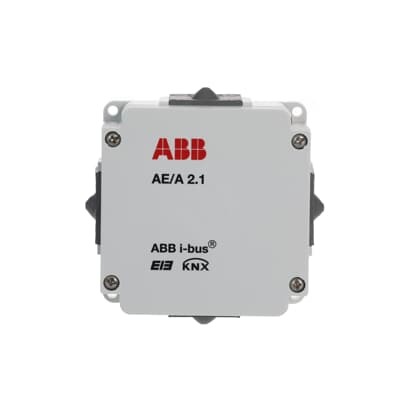

2CDG110086R0011
Part Number: 2CDG110086R0011
Product Information
Extended Description
2CDG110086R0011 ABB: The Analogue Input is used to detect and process 2 independent input signals. Among other things 0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT100 in 2-wire technology, PT1000 in 2-wire technology (value range -50…+150 °C), floating contacts, KT, KTY and user-defined input.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AE/A 2.1
Wiring Diagram
Connection diagram (.eps) [XX] AE/A 2.1
Mounting Type
Surface Mounted
Modular Components Included
Complete Device
Degree of Protection
IP54
Data Sheet, Technical Information
Product Information (.PDF) [EN] AE/xx.x | Technical Data (.PDF) [EN] AE/A 2.1
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
2
Number of Batteries
0
Power Loss
0.25 W
Color
light grey
Product Net Width
117 mm
Product Net Height
117 mm
Product Net Depth / Length
51 mm
Product Net Weight
0.25 kg
Dimension Diagram
9AKK108464A0587
E-Number (Finland)
2815106
E-Number (Norway)
4544083
E-Number (Sweden)
1750250
E-Number (Switzerland)
205610005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) AE/A 2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
2cc5bcb2-18dd-44c2-98bd-c8ac52a6f008 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) AE/A 2.1
KNX Certificate
KNX Certificate (.PDF) [EN] AE/A 2.1
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
Object Classification Code
A
