2CDG110089R0011
Part Number: 2CDG110089R0011
Product Information
Extended Description

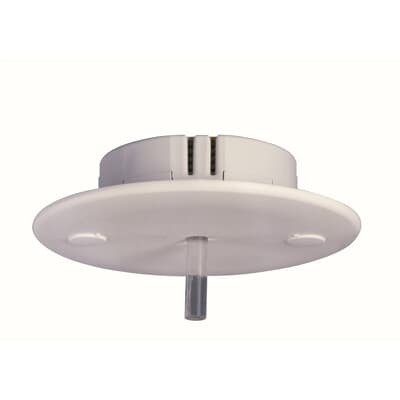

2CDG110089R0011 ABB: The light sensor is used to measure the brightness level in rooms. When combined with the light controller LR/S x.16.1 (x = 2 or 4), DLR/S and LR/M1.6.2 the light sensor is used for constant light control.
Instructions and Manuals
Installation and Operating Instructions (.PDF) LR/Sx.16.1
Wiring Diagram
Connection diagram Light Sensor (.eps) [XX] LF/U 2.1
Mounting Type
Flush Mounted
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] LF/U 2.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Sensor Type
Separate light sensor
Manual Operation
No
Illuminance
200 ... 3000 lx
Number of Batteries
0
Color
white
Product Net Width
54 mm
Product Net Height
20 mm
Product Net Depth / Length
54 mm
Product Net Weight
0.04 kg
Dimension Diagram
Dimensional Drawing Light Sensor (.svg) [XX] LF/U 2.1
E-Number (Finland)
2815144
E-Number (Norway)
4544249
E-Number (Sweden)
1750183
E-Number (Switzerland)
305390005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) LF/U 2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [XX] CB Report LR/Sx.16.1 LF/U 2.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) LF/U 2.1
ETIM 9
EC000927 - Brightness sensor for bus system
eClass
V11.0 : 27143111
UNSPSC
39121801
Object Classification Code
A
