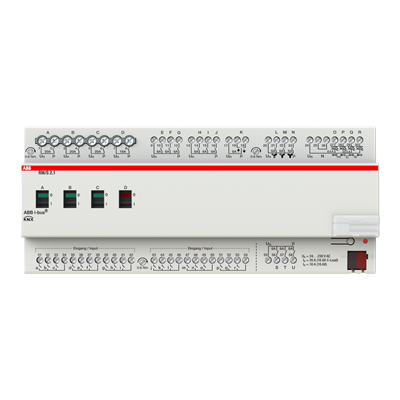

2CDG110095R0011
Part Number: 2CDG110095R0011
Product Information
Extended Description
2CDG110095R0011 ABB: Device to control of apartment ranges with bath, typically in hotels and small apartments. 18 inputs, 13 outputs, 1 shutter output, 3 fan outputs and 2x2 electronic outputs for valve drives. Device is preconfigured. Only VD3-File or higher exists.
Instructions and Manuals
Installation and Operating Instructions (.PDF) RM/S2.1
Wiring Diagram
Connection diagram (.eps) [XX] RM/S 2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] RM/Sx.1 | Technical Data (.PDF) [EN] RM/S2.1
Number of Outputs
21
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 18
Number of Input Channels
18
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Output Voltage (Uout)
230 V AC
Maximum Switching Current
20 A
Power Loss
8.15 W
Color
white
Width in Number of Modular Spacings
12.0
Product Net Width
216 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.7 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 12MW
E-Number (Finland)
2815161
E-Number (Norway)
4545006
E-Number (Sweden)
1751228
E-Number (Switzerland)
405610415
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] RM/S 2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
ea1adbdb-3a00-43e2-b1fd-6a7007439f5a Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] RM/S 2.1
KNX Certificate
KNX Certificate (.PDF) [EN] RM/S2.1
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
UNSPSC
39122221
Object Classification Code
A
