Part Number: 2CDG110101R0011
Product Information
Extended Description

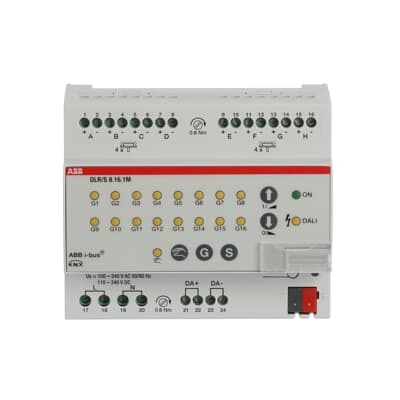

2CDG110101R0011 ABB: Single-Master DALI Controller DALI (EN62386) trademarked. For switching and dimming of 16 independent lighting groups. A maximum of 64 standard DALI devices (DT0) acc. DALI or DALI-2 can be connected. The device can be used for 8-fold constant lighting control in connection with eight Light Sensors LF/U 2.1. Fault feedback messages can be programmed and activated via KNX. With comfortable manual operation and status display.
Instructions and Manuals
Installation and Operating Instructions (.PDF) DLR/S 8.16.1M
Wiring Diagram
Connection diagram (.SVG) [XX] DLR/S 8.16.1M
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] DLR/S 8.16.1M
Data Sheet, Technical Information (Part 2)
Technical Data (.PDF) [DE] DLR/S 8.16.1M
Data Sheet, Technical Information (Part 3)
Product Information (.PDF) [DE] DG/S x.x, DGN/S, DLR/S | Product Information (.PDF) [EN] DG/S x.x, DGN/S, DLR/S
Communication Interface
DALI
Number of Outputs
1
Number of LEDs
16
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 8
Compatible Bus Systems
KNX (TP) | DALI
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
Yes
Number of Batteries
0
Auxiliary Voltage AC/DC
110 ... 230 V AC
Power Loss
1.6 W
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.22 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
E-Number (Finland)
2815303
E-Number (Norway)
4546703
E-Number (Sweden)
1751083
E-Number (Switzerland)
405671805
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) DLR/S 8.16.1M
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) DLR/S 8.16.1M
KNX Certificate
KNX Certificate (.PDF) [EN] DLR/S 8.16.1M
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
