2CDG110103R0011
Part Number: 2CDG110103R0011
Product Information
Extended Description

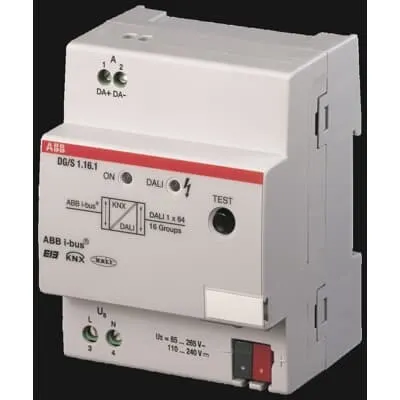

2CDG110103R0011 ABB: DALI Gateway, 1-fold, 16 groups, MDRC For controlling DALI devices via the ABB i-bus®. Up to 64 DALI Slaves are individual addressable. The control and status feedback happens via KNX with 16 lighting groups. Overlapped groups are possible. 14 scenes can be called or stored using 1 bit or 8 bit scene telegram via the KNX. Slave-, staircase- and sequencer- function are integrated. For an individually change of the DALI address or group assignment a separate DGS-Software-Tool is available
Instructions and Manuals
Installation and Operating Instructions (.PDF) DG/S 1.16.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] DG/S 1.16.1 | Product Information (.PDF) [EN] DG/S x.x, DGN/S, DLR/S
Communication Interface
DALI
Number of Outputs
1
Number of LEDs
1
Compatible Bus Systems
DALI | KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
Yes
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
110 ... 230 V AC
Input Voltage (Uin)
230 V AC
Power Loss
4 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.19 kg
Replacement Product ID (NEW)
2CDG110198R0011
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) DG/S 1.16.1
KNX Certificate
KNX Certificate (.PDF) [EN] DG/S 1.16.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
Standards
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007 | DIN EN 60669-2-1:2010-09 | EN 60669-2-1 2004/A12:2010
