2CDG110106R0011
Part Number: 2CDG110106R0011
Product Information
Extended Description

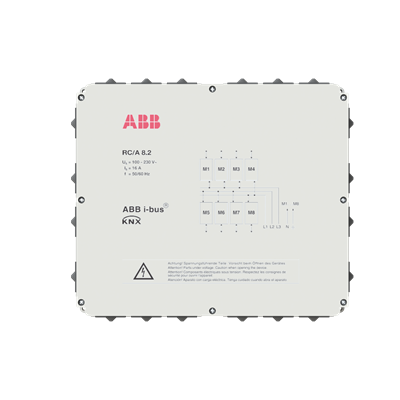

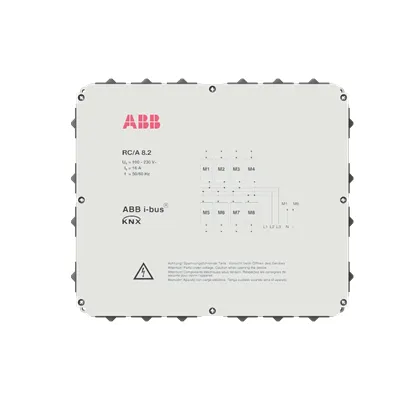

2CDG110106R0011 ABB: Accommodates up to 8 plug-in modules. It controls their function and communicates as one bus device via the ABB i-bus®. Any module type can be plugged into each module slot. Manual operation for functional tests.
Instructions and Manuals
Installation and Operating Instructions (.PDF) RC/A8.2
Wiring Diagram
Connection diagram (.eps) [XX] RC/A 8.2
Mounting Type
Surface Mounted
Degree of Protection
IP54
Data Sheet, Technical Information
Product Information (.PDF) [EN] RC/A8.2 | Technical Data (.PDF) [EN] RC/A8.2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Number of Batteries
0
Terminal Type
Screw Terminals
Auxiliary Voltage AC/DC
110 ... 240 V AC
Power Loss
4 W
Color
white
Product Net Width
50 mm
Product Net Height
270 mm
Product Net Depth / Length
316 mm
Product Net Weight
1.45 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] RC/A 8.2
E-Number (Finland)
2815376
E-Number (Norway)
4546688
E-Number (Sweden)
1751401
E-Number (Switzerland)
205640205
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) RC/A8.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) RC/A8.2
ETIM 9
EC001581 - Basic module for bus system
eClass
V11.0 : 27143152
Object Classification Code
A
