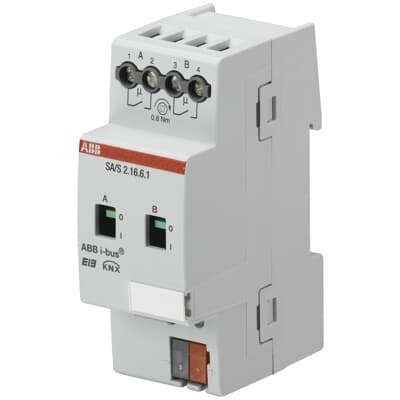

2CDG110112R0011
Part Number: 2CDG110112R0011
Product Information
Extended Description
2CDG110112R0011 ABB: Uses potential free contacts to switch 2 independent electrical loads via the ABB i-bus®. Each output has an independent load current detection. Manual operation and display of the switching state of the contacts. The 16/20AX, 16A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SA/S x.16.6.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S x.16.6.1 | Product Information (.PDF) [EN] SA/S x.x.x.1
Sub-Function
2-fold
Sub-Function 2
16 A
Contact Position Indication
ON / OFF
Number of Outputs
2
Number of LEDs
1
Maximum Number of Switching Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Suitable for C-Load
Yes
Terminal Type
Bus Connection
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
20 A
Maximum Switching Current
16 A
Maximum Switching Power
3680 W | 650 W
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.169 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
Replacement Product ID (NEW)
2CDG110269R0011
E-Number (Finland)
2815300
E-Number (Sweden)
1751136
E-Number (Switzerland)
405668215
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SA/S 2.16.6.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SA/S 2.16.6.1
KNX Certificate
KNX Certificate (.PDF) [EN] SA/S 2.16.6.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
Object Classification Code
A
