Part Number: 2CDG110113R0011
Product Information
Extended Description

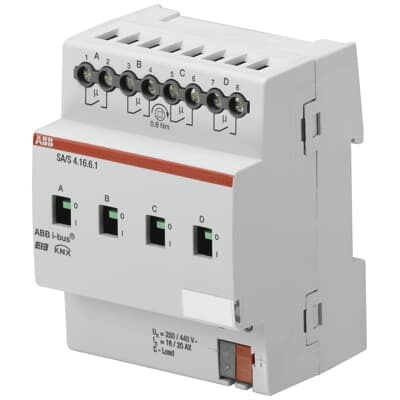

2CDG110113R0011 ABB: Uses potential free contacts to switch 4 independent electrical loads via the ABB i-bus®. Each output has an independent load current detection. Manual operation and display of the switching state of the contacts. The 16/20AX, 16A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SA/S x.16.6.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S x.16.6.1 | Product Information (.PDF) [EN] SA/S x.x.x.1
Sub-Function
4-fold
Sub-Function 2
16 A
Contact Position Indication
ON / OFF
Number of Outputs
4
Number of LEDs
1
Maximum Number of Switching Outputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Suitable for C-Load
Yes
Number of Batteries
0
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
20 A
Maximum Switching Current
16 A
Maximum Switching Power
3680 W
Power Loss
5.5 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.296 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
Replacement Product ID (NEW)
2CDG110270R0011
E-Number (Finland)
2815301
E-Number (Sweden)
1751138
E-Number (Switzerland)
405668415
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SA/S 4.16.6.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SA/S 4.16.6.1
KNX Certificate
KNX Certificate (.PDF) [EN] SA/S 4.16.6.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
Object Classification Code
A
