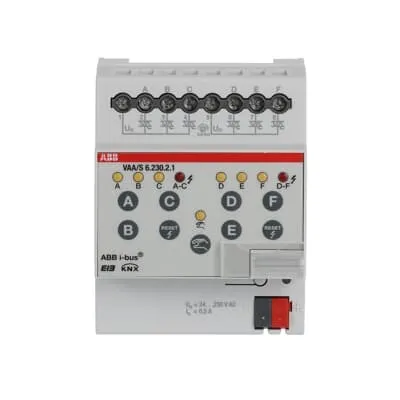

2CDG110116R0011
Part Number: 2CDG110116R0011
Product Information
Extended Description
2CDG110116R0011 ABB: For controlling thermoelectric valve drives in heating/cooling systems at 24...230 V AC. The outputs are protected against short circuits and overload and can be switched via manual push buttons during commissioning.
Instructions and Manuals
Installation and Operating Instructions VAA/S 6.230.2.1 / VAA/S 12.230.2.1
Wiring Diagram
Connection diagram (.SVG) [XX] VAA/S 6.230.2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] VAA/Sx.230.2.1
Number of Outputs
6
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Switching
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Voltage Range
24 ... 230 V AC
Output Voltage (Uout)
24 ... 230 V AC
Maximum Switching Current
0.3 A
Output Current Maximum (Iout)
0.16 A
Power Loss
2 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.14 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815418
E-Number (Norway)
4545165
E-Number (Sweden)
1756323
E-Number (Switzerland)
405710065
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) VAA/S6.230.2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
96a7f9e4-b6eb-4e31-9fad-e33496d3dd84 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report VAA/Sx.230.2.1 & HA-M-0.x.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) VAA/S6.230.2.1
KNX Certificate
KNX Certificate (.PDF) [EN] VAA/Sx.230.2.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
UNSPSC
39121801
Object Classification Code
A
