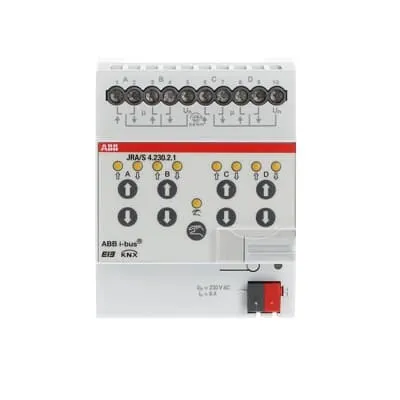

2CDG110121R0011
Part Number: 2CDG110121R0011
Product Information
Extended Description
2CDG110121R0011 ABB: For the control of independent 230 V AC drives via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. To protect the drives, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.
Instructions and Manuals
Installation and Operating Instructions (.PDF) JRA/S x.230.2
Wiring Diagram
Connection diagram (.SVG) [XX] JRA/S 4.230.2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Information (.PDF) [EN] JRA/Sx.2xxxx | Technical Data (.PDF) [EN] JRA/Sx.230.2
Special Functions
Switching
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Current Type
AC
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
0.7 A
Maximum Switching Power
2400 W
Power Loss
0.25 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.22 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
Replacement Product ID (NEW)
2CDG110285R0011
E-Number (Finland)
2815404
E-Number (Norway)
4545178
E-Number (Switzerland)
405430245
RoHS Information
RoHS - Declaration of Conformity JRA/S4.230.2.1
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f01e1dea-cf98-4f39-99fb-26bd1168f764 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report JRA/Sx.y.z.1 & BA-M-0.4.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) JRA/S4.230.2.1
KNX Certificate
KNX Certificate (.PDF) [EN] JRA/S4.230.2.1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
UNSPSC
39121801
Object Classification Code
A
