2CDG110143R0011
Part Number: 2CDG110143R0011
Product Information
Extended Description

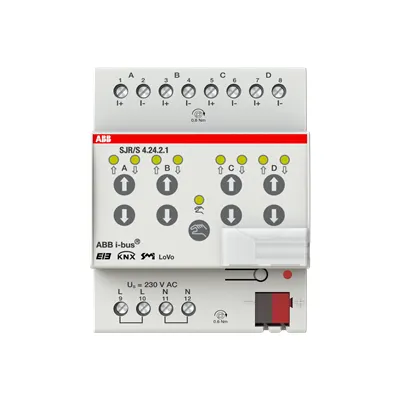

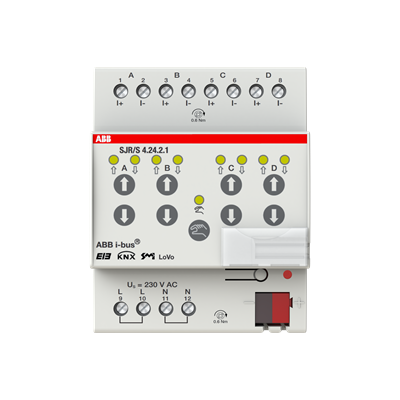

2CDG110143R0011 ABB: It controls four independent groups (broadcast) with up to four SMI (Standard Motor Interface) LoVo drives for positioning blinds, roller shutters, awnings and other shading products. Status signals (motor fault, direction of movement) can also be sent from the SMI drive on the bus. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SJR/S 4.24.2.1
Wiring Diagram
Connection diagram (.eps) [XX] SJR/S 4.24.2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SJR/S 4.24.2.1
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
KNX (TP) | SMI
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Current Type
DC
Power Loss
2 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.21 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815425
E-Number (Norway)
4545174
E-Number (Sweden)
1738041
E-Number (Switzerland)
405430545
RoHS Information
CE Declaration of Conformity (.PDF) SJR/S 4.24.2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) SJR/S 4.24.2.1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
UNSPSC
39121801
Object Classification Code
A
