2CDG110154R0011
Part Number: 2CDG110154R0011
Product Information
Extended Description

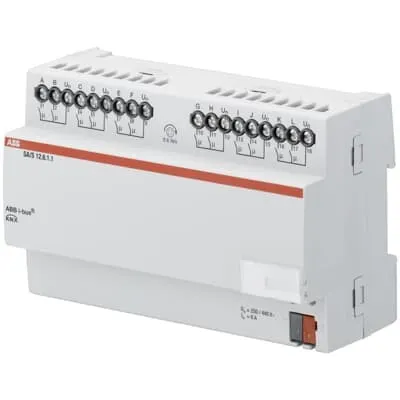

2CDG110154R0011 ABB: Uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus®. Every 2 contacts have a common supply phase. The 6A-AC3 device is especially suited to switch resistive, inductive or capacitive loads.
Instructions and Manuals
Installation and Operating Instructions (.PDF) SA/S x.6.1.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S x.6.1.1 | Product Information (.PDF) [EN] SA/S x.x.x.1
Contact Position Indication
ON / OFF
Number of Outputs
12
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
6 A
Maximum Switching Current
16 A
Maximum Switching Power
1200 W
Power Loss
2.5 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
144 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.35 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 12MW
Replacement Product ID (NEW)
2CDG110245R0011
E-Number (Sweden)
1738091
E-Number (Switzerland)
405665495
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SA/S 12.6.1.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SA/S 12.6.1.1
KNX Certificate
KNX Certificate (.PDF) [EN] SA/S 12.6.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
Object Classification Code
A
