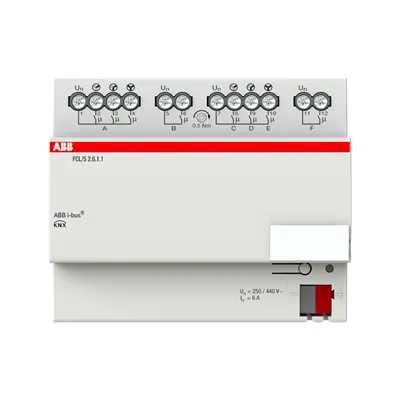

2CDG110164R0011
Part Number: 2CDG110164R0011
Product Information
Extended Description
2CDG110164R0011 ABB: Controls one two blowers or fans with up to three fan speeds via step or changeover control. Furthermore two additional equipments like a damper or valve can be switched by two floating outputs. Optionaly the second fan output can be switched to three switch outputs. The fan speed can be directly choosen, increased and decreased as well as controlled by the control value of a external closed-loop controller.
Instructions and Manuals
Installation and Operating Instructions (.PDF) FCL/Sx.6.1.1
Wiring Diagram
Connection diagram (.JPG) [XX] FCL/S 2.6.1.1 | 2CDC072072F0012
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] FCL/Sx.6.1.1
Special Functions
Valve Protection
Number of Outputs
2
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Switching
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
230 V AC
Input Voltage Type
AC
Output Voltage (Uout)
230 V AC
Rated Current (In)
40 A
Maximum Switching Current
6 A
Output Current Maximum (Iout)
6 A
Power Loss
2 W
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.266 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
E-Number (Finland)
2815465
E-Number (Norway)
4544705
E-Number (Sweden)
1738575
E-Number (Switzerland)
405972205
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) FCL/S2.6.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) FCL/S2.6.1.1
KNX Certificate
KNX Certificate (.PDF) [EN] FCL/S2.6.1.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
UNSPSC
39121801
Object Classification Code
A
