2CDG110167R0011
Part Number: 2CDG110167R0011
Product Information
Extended Description

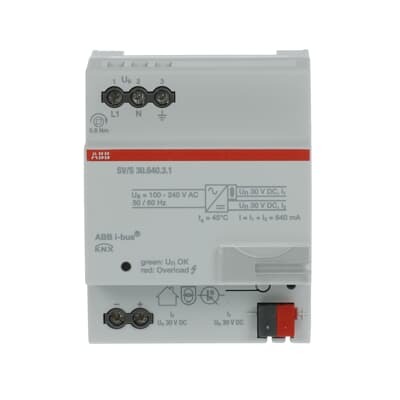

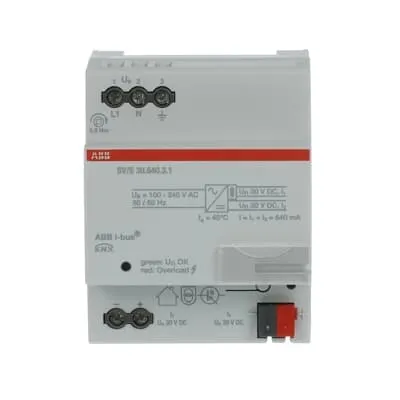

2CDG110167R0011 ABB: KNX power supplies 640 mA generate and monitor the KNX system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. Device type SV/S 30.640.3.1 has an additional 30 V DC short-circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke). With two-coloured status indicator and wide range input from 85…265 V AC, 50/60 Hz.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SV/S 30.640.3.1, SV/S 30.320.1.1, SV/S 30.160.1.1
Wiring Diagram
Connection diagram (.SVG) [XX] SV/S 30.640.3.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SV/S 30.160.1.1, SV/S 30.320.1.1, SV/S 30.640.3.1
Number of Outputs
2
Number of LEDs
1
Number of Integrated Chokes
1
Number of Supplied Lines
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Output Voltage (Uout)
30 V DC
Buffer Voltage
No
Output Current Maximum (Iout)
0.64 A
Power Loss
9 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.26 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815463
E-Number (Norway)
4544377
E-Number (Sweden)
1738579
E-Number (Switzerland)
405800615
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SV/S 30.640.3.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SV/S 30.640.3.1
KNX Certificate
KNX Certificate (.PDF) [EN] SV/S30.640.3.1
ETIM 9
EC000675 - Power supply for bus system
eClass
V11.0 : 27143114
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4127 >> Power supply units
Object Classification Code
A
