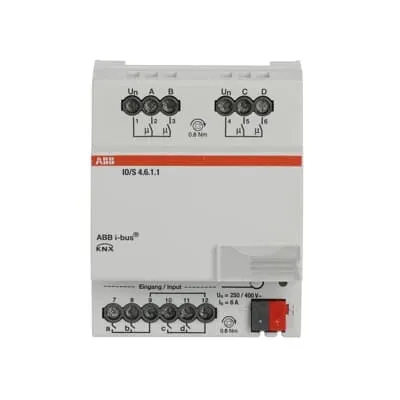

2CDG110168R0011
Part Number: 2CDG110168R0011
Product Information
Extended Description
2CDG110168R0011 ABB: For the control of loads in residential areas, typically in hotel rooms and apartments. The I/O Actuators provide binary inputs for the connection of conventional push-buttons and outputs for switching loads. Inputs and outputs can be internally connected by ETS. By integrating the devices into KNX networks further functions can be realised: e.g. central control or room based emergency calls to a control centre.
Instructions and Manuals
Installation and Operating Instructions (.PDF) IO/S x.6.1.1
Wiring Diagram
Connection diagram (.eps) [XX] IO/S 4.6.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] IO/S 4.6.1.1
Special Functions
Switching
Sub-Function
LED controlling
Maximum Number of Switching Outputs
4
Number of Digital Inputs
4
Number of Output Channels
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Current Type
AC
Auxiliary Voltage AC/DC
KNX
Input Voltage (Uin)
35 V
Input Voltage Type
Pulsed
Output Voltage (Uout)
230 V AC
Rated Current (In)
6 A
Maximum Switching Current
6 A
Maximum Switching Power
1200 W
Power Loss
1.05 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.17 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815272
E-Number (Sweden)
1738024
E-Number (Switzerland)
405443405
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) IO/S 4.6.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
5144ccba-65f8-4b6a-8b84-150a9f26fd6e Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) IO/S 4.6.1.1
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
UNSPSC
39122221
Object Classification Code
A
