Part Number: 2CDG110172R0011
Product Information
Extended Description

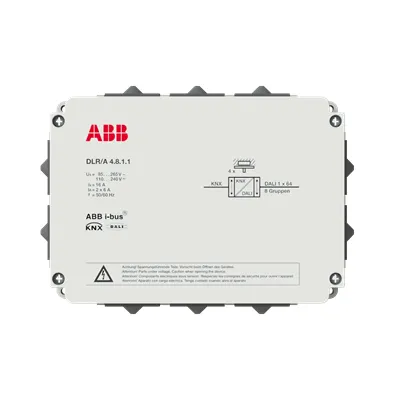

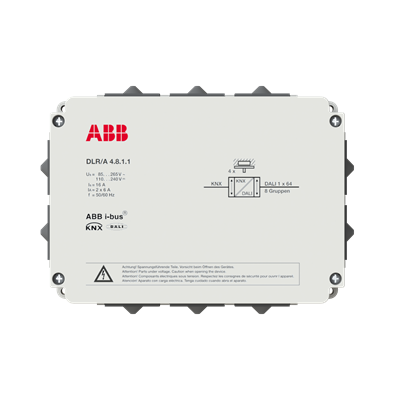

2CDG110172R0011 ABB: Single-Master DALI Controller DALI (EN62386) trademarked. Surface mounting device for switching and dimming of 8 independent groups of luminaries. Up to 64 standard DALI participants (DT0) acc. DALI or DALI-2 can be connected to one DALI control line. When combined with the light sensor LF/U 2.1 the device can be used as a 4-fold light controller for constant light control. Additionally a staircase and master / slave function is integrated. A great number of status feedback e.g. lamp and ballast fault can be transferred from DALI to KNX. With this functions the DALI light controller is a key factor in every energy efficient building automation. With his surface mounting housing it is possible to insert the device central in false ceiling or underfloor installation.
Instructions and Manuals
Installation and Operating Instructions (.PDF) DLR/A 4.8.1.1
Wiring Diagram
Connection diagram (.SVG) [XX] DLR/A 4.8.1.1
Mounting Type
Surface Mounted
Ambient Air Temperature
Operation -20 ... +45 °C
Degree of Protection
IP54
Data Sheet, Technical Information
Technical Data (.PDF) [EN] DLR/A 4.8.1.1
Data Sheet, Technical Information (Part 2)
Technical Data (.PDF) [DE] DLR/A 4.8.1.1
Communication Interface
DALI
Number of Outputs
1
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
DALI | KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
110 ... 230 V AC
Power Loss
3.7 W
Color
light grey
Product Net Width
202 mm
Product Net Height
147 mm
Product Net Depth / Length
50 mm
Product Net Weight
0.51 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] DLR/A 4.8.1.1
E-Number (Finland)
2815278
E-Number (Sweden)
1738111
E-Number (Switzerland)
919019909
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) DLR/A 4.8.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) DLR/A 4.8.1.1
KNX Certificate
KNX Certificate (.PDF) [EN] DLR/A 4.8.1.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
