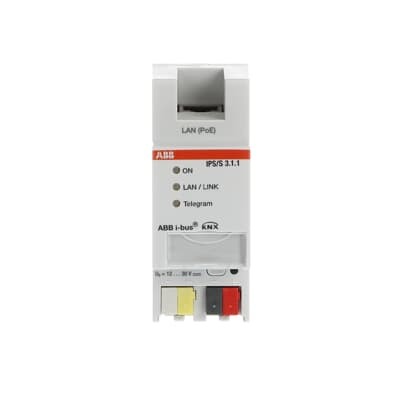

2CDG110177R0011
Part Number: 2CDG110177R0011
Product Information
Extended Description
2CDG110177R0011 ABB: Connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (Tunneling). KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Tunneling Server are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12..30 V DC or PoE.
Instructions and Manuals
Installation and Operating Instructions (.PDF) IPS/S3.1.1
Wiring Diagram
Connection diagram (.eps) [XX] IPX/S 3.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] IPS/S3.1.1
Communication Interface
Ethernet
Number of LEDs
3
Compatible Bus Systems
KNX (IP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
PoE
Auxiliary Voltage AC/DC
12 ... 30 V DC
Power Loss
1.5 W
Surface Finishing
Matt
Housing Material
Plastic
RAL Number
RAL 7035 - Light Grey
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.1 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
E-Number (Finland)
2815547
E-Number (Norway)
4544174
E-Number (Sweden)
1738896
E-Number (Switzerland)
405701035
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) IPS/S3.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) IPS/S3.1.1
KNX Certificate
KNX Certificate (.PDF) [EN] IPS/S3.1.1
ETIM 9
EC000674 - Interface for bus system
eClass
V11.0 : 27143102
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
