2CDG110186R0011
Part Number: 2CDG110186R0011
Product Information
Extended Description

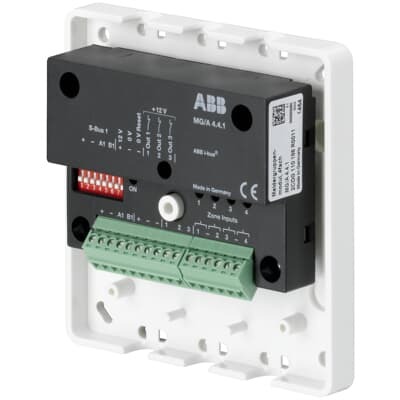

2CDG110186R0011 ABB: to connect to Security Panel GM/A 8.1 via the Security-Bus. For expansion of the Security-Panel by 4 detector zones. Used for connection to the exterior perimeter detectors such as magnetic reed contacts and passive glass break sensors. The module has 4 zones to which several detectors can be connected. The status of each zone is displayed with a status LED. The Zone Module delivers the control signals and the supply voltage for the external detectors. There is no need for an external voltage supply, the Zone Modules are supplied via the Security-Bus.
Instructions and Manuals
Installation and Operating Instructions (.PDF) MG/x4.4.1
Mounting Type
Surface Mounted
Degree of Protection
IP30
Data Sheet, Technical Information
Technical Data (.PDF) [EN] MG/x4.4.1
Number of Outputs
3
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP) | S-Bus/XIB
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Output Voltage (Uout)
12 V DC
Maximum Switching Current
0.2 A
Power Loss
1.173 W
Product Net Width
114 mm
Product Net Height
114 mm
Product Net Depth / Length
36 mm
Product Net Weight
0.166 kg
Replacement Product ID (NEW)
No replacement
E-Number (Switzerland)
405070305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) MG/A4.4.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) MG/A4.4.1
ETIM 9
EC002687 - Expansion module for danger detection systems
eClass
V11.0 : 27390314
Object Classification Code
A
