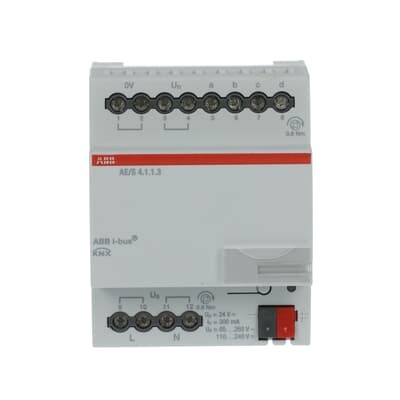

2CDG110190R0011
Part Number: 2CDG110190R0011
Product Information
Extended Description
2CDG110190R0011 ABB: The analogue input is used to detect and process 4 independent input signals. E.g. 0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT100, PT1000 and floating contacts. Integrated power supply to generate the 24 V DC voltage for external sensors. The device can be operated with a suppy voltage of 115 to 230 V, 50/60 Hz. Maximum 300 mA supplied on the complete voltage range. Application software adjusted for detection and processing of analogue variables.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AE/S 4.1.1.3
Wiring Diagram
Connection diagram (.SVG) [XX] AE/S 4.1.1.3
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] AE/S 4.1.1.3
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
4
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.23 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815536
E-Number (Norway)
4544201
E-Number (Sweden)
1738904
E-Number (Switzerland)
405631005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) AE/S 4.1.1.3
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) AE/S 4.1.1.3
KNX Certificate
KNX Certificate (.PDF) [EN] AE/S 4.1.1.3
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
Object Classification Code
A
Standards
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
