2CDG110191R0011
Part Number: 2CDG110191R0011
Product Information
Extended Description

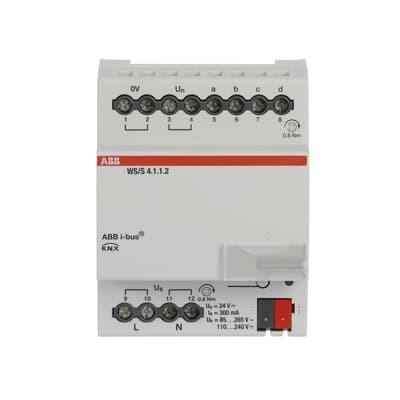

2CDG110191R0011 ABB: The weather station is used to detect and process 4 independent input signals acc. DIN IEC 60381 (0-1 V, 0-5 V, 0-10 V, 0-20 mA, 4-20 mA, 0-1000 Ohm, PT100, PT1000 and floating contacts). Integrated power supply to generate the 24 V DC voltage for external sensors. The device can be operated with a suppy voltage of 115 to 230 V, 50/60 Hz. Maximum 300 mA supplied on the complete voltage range. Application software adjusted for detection and processing of weather data. All common weather sensors for wind speed, wind direction, rain, amount of rain, brightness, light intensity, twilight, air pressure, humidity or temperature can be connected to the device.
Instructions and Manuals
Installation and Operating Instructions (.PDF) WS/S4.1.1.2
Wiring Diagram
Connection diagram (.SVG) [XX] WS/S 4.1.1.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] WS/S4.1.1.2
Number of LEDs
1
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Analog Inputs
4
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Auxiliary Voltage AC/DC
230 V AC
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.23 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815537
E-Number (Norway)
4544392
E-Number (Sweden)
1738708
E-Number (Switzerland)
405551105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) WS/S4.1.1.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) WS/S4.1.1.2
KNX Certificate
KNX Certificate (.PDF) [EN] WS/S4.1.1.2
ETIM 9
EC000794 - Analogue input for bus system
eClass
V11.0 : 27143107
Object Classification Code
A
Standards
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
