2CDG110193R0011
Part Number: 2CDG110193R0011
Product Information
Extended Description

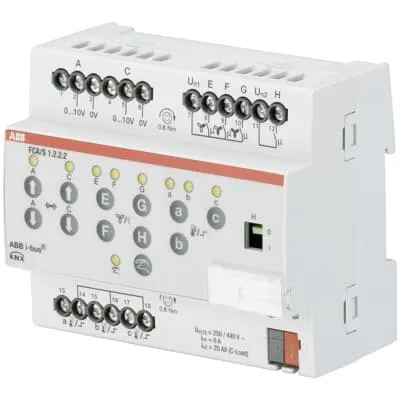

2CDG110193R0011 ABB: Controls typical fan coil units by two analogue outputs for 0 - 10 V valve drives and a 3 channel output for fan with up to 3 stages. A additional load (up to 16 A) like a auxiliary heating can be controlled by a switch output. Window sensors, condensed water sensors and temperature sensors can be connected to the three universal inputs. The device has a manual operation for quick maintenance. The Fan Coil Actuator supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) FCA/S1.x.x.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
2CDC508139D0202
Special Functions
Valve Protection
Number of Outputs
2
Number of Digital Inputs
3
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 3
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Continious
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Voltage Range
0 ... 10 V DC
Output Voltage (Uout)
0 ... 10 V DC
Maximum Switching Current
0.15 A
Output Current Maximum (Iout)
0.15 A
Power Loss
2 W
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
108 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.3 kg
Replacement Product ID (NEW)
2CDG110213R0011
E-Number (Sweden)
1738901
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) FCA/S1.2.2.2
KNX Certificate
KNX Certificate (.PDF) [EN] FCA/S1.2.2.2
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
Object Classification Code
A
