2CDG110198R0011
Part Number: 2CDG110198R0011
Product Information
Extended Description

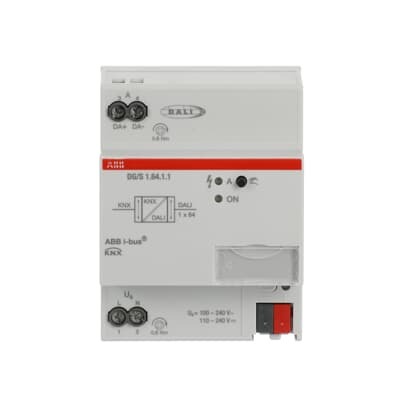

2CDG110198R0011 ABB: Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 standard devices via ABB i-bus® KNX. One DALI output for up to 64 DALI participants. The DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (64), with lighting groups (16), together in broadcast or per scenes (16). Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene- function are integrated. Self-contained emergency converter, DT1 acc. EN 62386-202 will be supported. By means of KNX and emergency converter, different emergency tests (e.g., function and duration test) can be triggered. Other DALI devices e.g., DT6 or DT8 can be controlled via standard DALI commands acc. to EN 62386-102.
For diagnostic use and individual change of the DALI address or group assignment a separate software tool (ABB i-bus® Tool) is available.
Instructions and Manuals
Installation and Operating Instructions (.PDF) DG/S x.64.1.1
Wiring Diagram
Connection diagram (.SVG) [XX] DG/S 1.64.1.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] DG/S x.64.1.1
Communication Interface
DALI
Number of Outputs
1
Number of LEDs
1
Compatible Bus Systems
KNX (TP) | DALI
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
Yes
Number of Batteries
0
Auxiliary Voltage AC/DC
110 ... 230 V AC
Input Voltage (Uin)
85 ... 264 V AC
Power Loss
2 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.133 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815584
E-Number (Norway)
4544214
E-Number (Sweden)
1739089
E-Number (Switzerland)
405670305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) DG/S 1.64.1.1
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
202aa237-cd1a-4cd1-8f22-4e17f0717ba9 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report DG/S x.64.x.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) DG/S 1.64.1.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
Standards
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007 | DIN EN 60669-2-1:2010-09 | EN 60669-2-1 2004/A12:2010
