2CDG110202R0011
Part Number: 2CDG110202R0011
Product Information
Extended Description

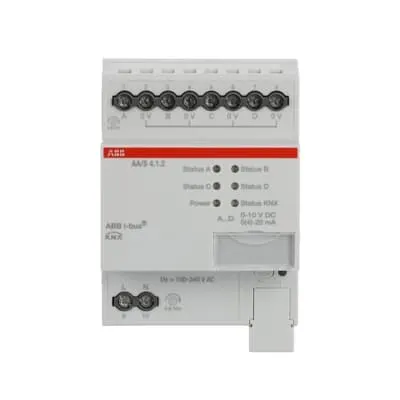

2CDG110202R0011 ABB: The Analogue Actuator converts KNX telegrams in voltage (0...10V) or current (0…24mA) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 4-fold DIN rail device. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AA/S4.1.2
Wiring Diagram
Connection diagram (.SVG) [XX] AA/S 4.1.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] AA/S4.1.2
Number of Outputs
4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Number of Batteries
0
Terminal Type
Bus Connection
Voltage Range
0 ... 10 V DC
Auxiliary Voltage AC/DC
110 ... 240 V AC
Output Voltage (Uout)
0 ... 10 V DC
Maximum Switching Current
0.02 A
Power Loss
0.8 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.165 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
Replaced Product ID (OLD)
2CDG120005R0011
E-Number (Finland)
2815578
E-Number (Norway)
4544208
E-Number (Sweden)
1739047
E-Number (Switzerland)
405650005
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) AA/S4.1.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) AA/S4.1.2
ETIM 9
EC001096 - Analogue actuator for bus system
eClass
V11.0 : 27143109
UNSPSC
39121801
Object Classification Code
A
