2CDG110203R0011
Part Number: 2CDG110203R0011
Product Information
Extended Description

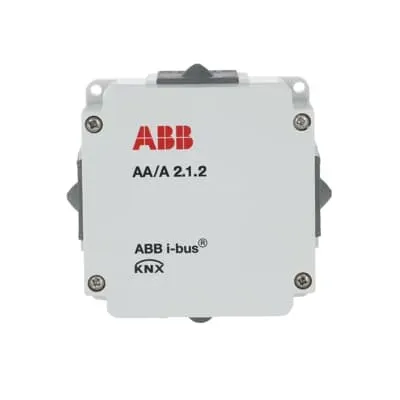

2CDG110203R0011 ABB: The Analogue Actuator converts KNX telegrams in voltage (0…10V) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 2-fold device with a housing for surface mounting. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AA/A 2.1.2
Wiring Diagram
Connection diagram (.JPG) [DE] AA/A 2.1.2
Mounting Type
Surface Mounted
Modular Components Included
Complete Device
Ambient Air Temperature
Operation -20 ... +70 °C
Degree of Protection
IP54
Data Sheet, Technical Information
Technical Data (.PDF) [EN] AA/A 2.1.2
Number of Outputs
2
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Number of Batteries
0
Terminal Type
Bus Connection
Voltage Range
0 ... 10 V DC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
0 ... 10 V DC
Power Loss
0.3 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
117 mm
Product Net Height
117 mm
Product Net Depth / Length
51 mm
Product Net Weight
0.26 kg
Built-In Depth (t2)
51 mm
Dimension Diagram
9AKK108464A0587
E-Number (Finland)
2815579
E-Number (Norway)
4544082
E-Number (Sweden)
1739048
E-Number (Switzerland)
405650105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) AA/A 2.1.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
dc5ed82c-f241-4291-882b-062944c53983 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) AA/A 2.1.2
ETIM 9
EC001096 - Analogue actuator for bus system
eClass
V11.0 : 27143109
UNSPSC
39121801
Object Classification Code
A
