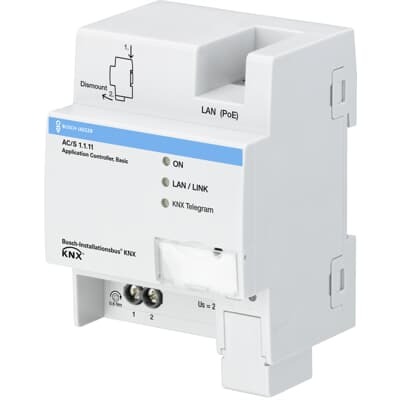

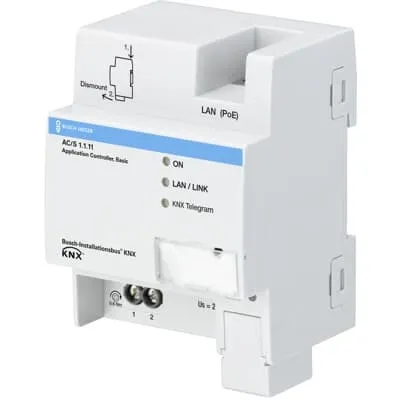

2CDG110205R0021

Part Number: 2CDG110205R0021
2CDG110205R0021
Manufacturer
ABB
Part number
2CDG110205R0021
Category

Product Information

Extended Description

2CDG110205R0021 ABB: Automation Controller with pre-defined Automation Modules for a holistic Heating, Ventilation and Air Conditioning (HVAC) Automation Solution from Central HVAC to Room Automation to meet the Energy Efficiencies Objectives like EN 15232 or LEED. Automation Modules for example Schedule, Set Point Calculation, Heat Curve Calculation, Data Logging and Device Monitoring. Own Automation Modules can be created by a graphical Logic Editor. The Controller has an automatic generated web based User Interface to monitor and manage the KNX System. The Engineering is done completely by the ETS. An additional external Software is not required.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] AC/S 1.1.11
Wiring Diagram
Connection diagram (.eps) [XX] AC/S 1.x.x.x
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
2CDG941189P0102
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
24 V DC
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.192 kg
Replacement Product ID (NEW)
2CDG110205R0011
RoHS Information
CE & RoHS Declaration of conformity (.PDF) [XX] AC/S 1.1.11
RoHS Status
Following EU Directive 2011/65/EU
SCIP
409e1af2-c759-49be-a209-4f0f674bced9 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of conformity (.PDF) [XX] AC/S 1.1.x
ETIM 9
EC000676 - Logic component for bus system
eClass
V11.0 : 27143103
UNSPSC
32151705
IDEA Granular Category Code (IGCC)
3567 >> PLC function/technology module
Object Classification Code
A
