2CDG110207R0011
Part Number: 2CDG110207R0011
Product Information
Extended Description

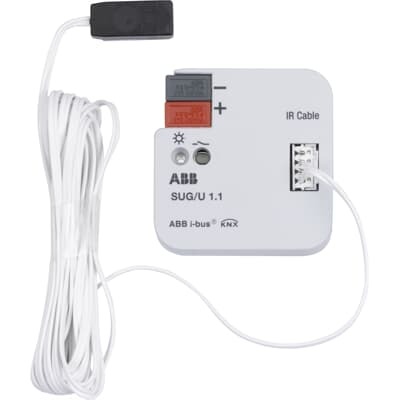

2CDG110207R0011 ABB: The Split Unit Gateway forms the interface between the KNX system and many manufacturers’ air conditioners, so-called split units. The device converts the KNX telegrams into infrared commands and transmits them to the split unit.
The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any KNX sensors or via a visual display system. The device is put into operation with the ETS, and a free ETS app is available to select the split unit model. Auxiliary voltage is not required.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SUG/U 1.1
Wiring Diagram
Connection diagram (.eps) [XX] SUG/U 1.1
Mounting Type
Flush Mounted | Surface Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SUG/U 1.1
Communication Interface
IR-interface
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
No
Number of Batteries
0
Input Voltage (Uin)
30 V
Power Loss
0.4 W
Color
light grey
Product Net Width
40 mm
Product Net Height
39 mm
Product Net Depth / Length
12 mm
Product Net Weight
0.02 kg
Dimension Diagram
Dimension drawing (.JPG) [EN] SUG/U 1.1
E-Number (Finland)
2814545
E-Number (Norway)
4544216
E-Number (Sweden)
1739091
E-Number (Switzerland)
405830305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SUG/U 1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
8dc06334-0fb3-4901-b8f4-8b249511b33d Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SUG/U 1.1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
Object Classification Code
A
