2CDG110208R0011
Part Number: 2CDG110208R0011
Product Information
Extended Description

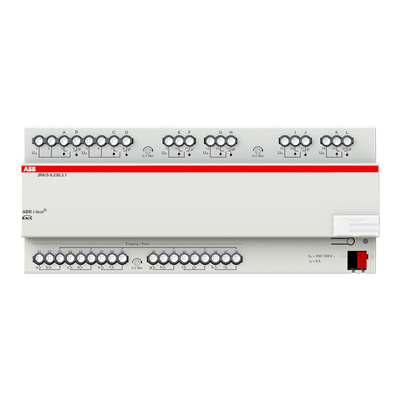

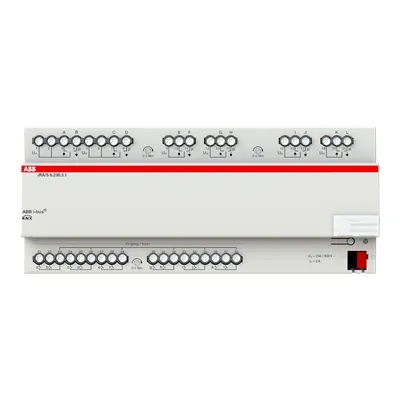

2CDG110208R0011 ABB: For the control of 6 independent Blind/ Roller drives or air dampers. Via the 12 binary input a direct operation of the outputs is possible with conventional switch sensors. The binary inputs may also be used for other operations (e.g. switching, dimming). To protect the drives, the output contacts are electromechanically locked against each other.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] JRA/S 6.230.3.1
Wiring Diagram
Connection diagram (.SVG) [XX] JRA/S 6.230.3.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical data (.PDF) [EN] JRA/S 6.230.3.1
Number of Outputs
6
Number of Inputs
12
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Current Type
AC
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
6 A
Maximum Switching Power
1380 W
Power Loss
5.15 W
Color
light grey
Width in Number of Modular Spacings
12.0
Product Net Width
216 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.55 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 12MW
Replacement Product ID (NEW)
2CDG110293R0011
E-Number (Finland)
2814546
E-Number (Sweden)
1739215
E-Number (Switzerland)
405430165
RoHS Information
CE Declaration of Conformity (.PDF) [EN] JRA/S 6.230.3.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
c28c3cfc-eb2c-4ad1-8b86-84b3f3513d6b Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [EN] JRA/S 6.230.3.1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
UNSPSC
39121801
