2CDG110213R0011
Part Number: 2CDG110213R0011
Product Information
Extended Description

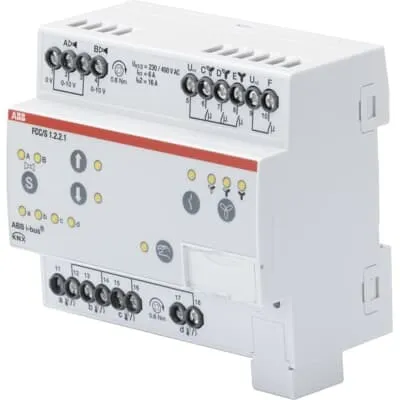

2CDG110213R0011 ABB: For the control of fan coil units. Via two analog outputs, two analog valves or one 6-way valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The FCC/S 1.2.2.1 features an easy to use manual operation.
The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] FCC/S 1.x.x.1
Wiring Diagram
Connection diagram (.SVG) [XX] FCC/S 1.2.2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] FCC/S 1.2.2.1
Special Functions
Valve Protection
Number of Outputs
5
Number of Digital Inputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Voltage Range
0 ... 10 V DC
Maximum Switching Current
16 A
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
105 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.235 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
E-Number (Finland)
2814559
E-Number (Sweden)
1739450
E-Number (Switzerland)
405712125
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] FCC/S 1.2.2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report FCC/S1.x.y.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] FCC/S 1.2.2.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
UNSPSC
39121801
Object Classification Code
A
