2CDG110216R0011
Part Number: 2CDG110216R0011
Product Information
Extended Description

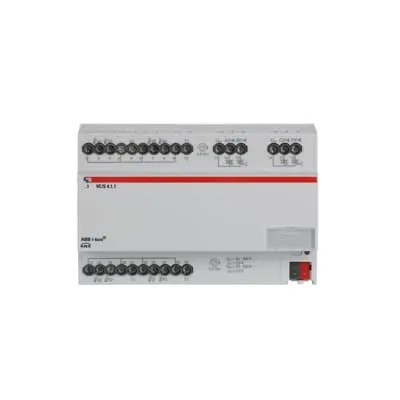

2CDG110216R0011 ABB: For the control of heating and cooling applications in the room, such as radiator, floor heating or cooling ceiling. The device has 4 channels each for the independent control of a heating or cooling application. Each channel has an electronic valve output for the control of a thermoelectric valve drive, as well as 3 inputs to detect and monitor the room status (use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of each channel. Each channel has its own integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device.
The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] VC/S 4.x.1
Wiring Diagram
Connection diagram (.SVG) [XX] VC/S 4.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] VC/S 4.1.1
Special Functions
Valve Protection
Number of Outputs
4
Number of Digital Inputs
12
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 12
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Continious
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
230 V AC
Output Current Maximum (Iout)
0.5 A
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
140 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.27 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
E-Number (Finland)
2814565
E-Number (Sweden)
1739455
E-Number (Switzerland)
405710115
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] VC/S 4.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report VC/S4.x.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] VC/S 4.1.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
UNSPSC
39121801
Object Classification Code
A
