2CDG110218R0011
Part Number: 2CDG110218R0011
Product Information
Extended Description

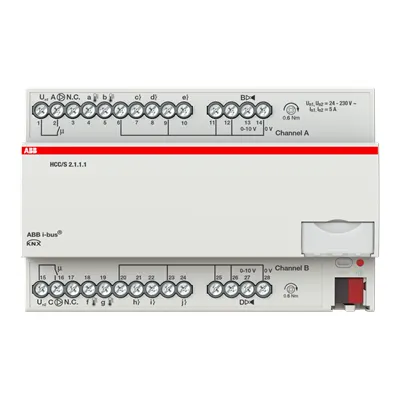

2CDG110218R0011 ABB: For the control of a heating or cooling circuit. The device has 2 channels, each with an analog output to control the mixing valve (0…10V) of a heating or cooling circuit as well as a relay output (5A) to switch the pump of the circuit. Via 3 binary inputs it is possible to monitor the status of the pump (via potential free contacts) and integrate these feedback into the control of the pump. The flow and return flow temperature are measured and used for the calculation of the control value for the valve output in the integrated controller. The set point temperature is received via the KNX bus. By bundling both channels of the device it is also possible to use it for double pump systems.
The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] HCC/S 2.x.x.1
Wiring Diagram
Connection diagram (.eps) [XX] HCC/S 2.1.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] HCC/S 2.1.1.1
Special Functions
Valve Protection
Number of Outputs
4
Number of Digital Inputs
10
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 10
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Continious
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
0 ... 10 V DC
Maximum Switching Current
5 A
Power Loss
3 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
140 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.28 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
E-Number (Finland)
2814567
E-Number (Sweden)
1739457
E-Number (Switzerland)
405711215
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] HCC/S 2.1.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report HCC/Sx.y.z.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] HCC/S 2.1.1.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
UNSPSC
39121801
Object Classification Code
A
