2CDG110222R0011

Part Number: 2CDG110222R0011
2CDG110222R0011
Manufacturer
ABB
Part number
2CDG110222R0011
Category

Product Information

Extended Description

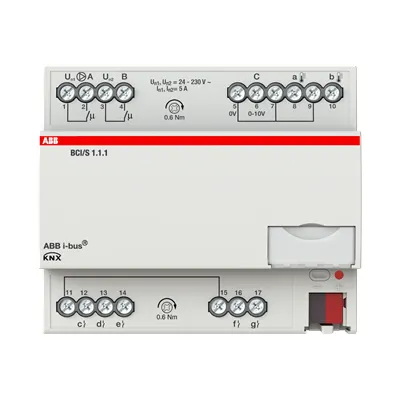

2CDG110222R0011 ABB: As interface between the KNX system and a heat generator or chiller. Via an analog output (0…10V) the set point or set point adjustment temperature can be transmitted to the heat generator/chiller. The set point itself is received via KNX. Via two binary inputs the device can monitor the status of the heat generator/chiller (via potential free contacts) and send it on the KNX bus. A relay output (5A) is included to switch or enable/disable the heat generator/chiller. With an additional relay output (5A) the pump of the heat generator/chiller can be switched on and off. Via 3 binary inputs it is possible to monitor the status of the pump (via potential free contacts) and integrate these feedback into the control of the pump. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] BCI/S 1.1.1
Wiring Diagram
Connection diagram (.eps) [XX] BCI/S 1.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] BCI/S 1.1.1
Maximum Number of Switching Outputs
2
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 5
Number of Input Channels
5
Number of Output Channels
3
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Current Type
DC
Rated Operational Voltage
230 V AC
Input Voltage (Uin)
21 ... 32 V
Output Voltage (Uout)
0 ... 10 V DC | 230 V AC
Rated Current (In)
5 A
Maximum Switching Current
6 A
Maximum Switching Power
1150 W
Color
light grey
Width in Number of Modular Spacings
6.0
Product Net Width
105 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.21 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 6MW
E-Number (Finland)
2814571
E-Number (Sweden)
1739461
E-Number (Switzerland)
405711115
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] BCI/S 1.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report BCI/S1.1.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] BCI/S 1.1.1
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
UNSPSC
39122221
Object Classification Code
A
