2CDG110248R0021
Part Number: 2CDG110248R0021
Product Information
Extended Description

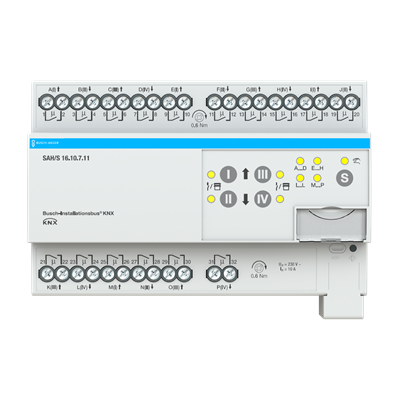

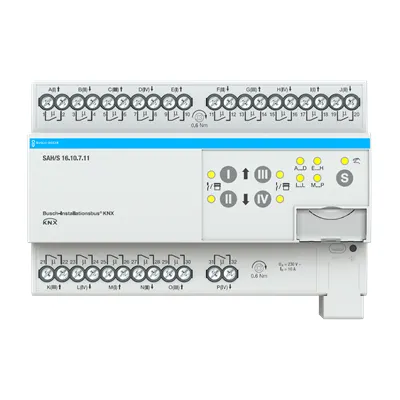

2CDG110248R0021 ABB: The compact 10 A combi switch actuator has 16 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SAH/S x.10.7.11
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] SAH/S 16.10.7.11
Contact Position Indication
ON / OFF
Number of Outputs
16
Number of LEDs
10
Maximum Number of Switching Outputs
16
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Suitable for C-Load
No
Terminal Type
Bus Connection
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
10 A
Maximum Switching Current
10 A
Maximum Switching Power
1200 W
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp | Electrical drives
Power Loss
6 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
140 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.502 kg
Built-In Depth (t2)
64.5 mm
Replacement Product ID (NEW)
2CDG110248R0011
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SAH/S 16.10.7.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e7f10cf3-ae91-4557-8e59-8ba255d4ae37 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SAH/S Combi
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SAH/S 16.10.7.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
