2CDG110250R0011
Part Number: 2CDG110250R0011
Product Information
Extended Description

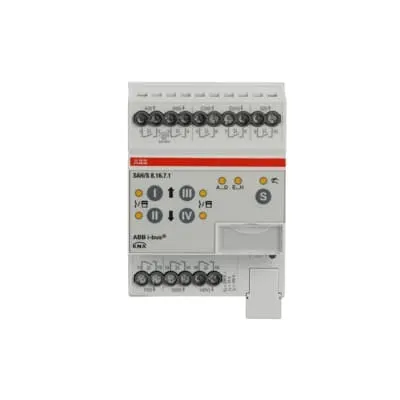

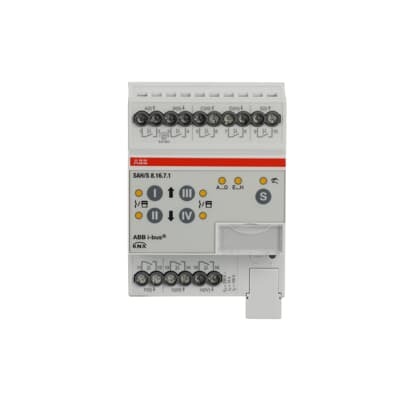

2CDG110250R0011 ABB: The compact 16 A combi switch actuator has 8 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SAH/S x.16.7.1
Wiring Diagram
Connection diagram (.SVG) [XX] SAH/S 8.16.7.1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SAH/S 8.16.7.1
Contact Position Indication
ON / OFF
Number of Outputs
8
Number of LEDs
8
Maximum Number of Switching Outputs
8
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Utilization Category
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation
Yes
Suitable for C-Load
No
Number of Batteries
0
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
16 A
Maximum Switching Current
16 A
Maximum Switching Power
1200 W
Power Loss
4 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.272 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2814685
E-Number (Norway)
4549791
E-Number (Sweden)
1739888
E-Number (Switzerland)
405 865 085
ABB EcoSolutions
Yes
EcoSolutions Profile
EcoSolution Product Profile (.PDF) [EN] ABB i-bus© KNX Switch Actuators SA/S & SAH/S
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 32.7 %
Circular Design Principles Lifetime
Declaration KNX (.PDF) [EN] Declaration lifetime KNX products ABB
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Extended Product Lifetime
Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services | Product Durability | Product Modularity
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SAH/S 8.x.7.1
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SAH/S 8.16.7.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
80b3db89-e3de-4930-85af-1668bde58e3f Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SAH/S Combi
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SAH/S 8.16.7.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
