2CDG110252R0021
Part Number: 2CDG110252R0021
Product Information
Extended Description

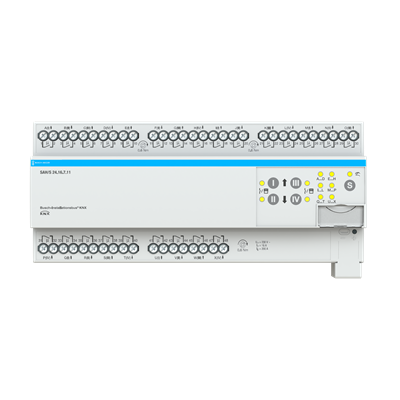

2CDG110252R0021 ABB: The compact 16 A combi switch actuator has 24 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SAH/S x.16.7.11
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] SAH/S 24.16.7.11
Contact Position Indication
ON / OFF
Number of Outputs
24
Number of LEDs
12
Maximum Number of Switching Outputs
24
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Suitable for C-Load
No
Number of Batteries
0
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
16 A
Maximum Switching Current
16 A
Maximum Switching Power
1200 W
Power Loss
12 W
Color
light grey
Width in Number of Modular Spacings
12.0
Product Net Width
210 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.72 kg
Built-In Depth (t2)
64.5 mm
Replacement Product ID (NEW)
2CDG110252R0011
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SAH/S 24.16.7.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
2d915b01-6865-46b7-972e-191cae38021e Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SAH/S Combi
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SAH/S 24.16.7.1
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
