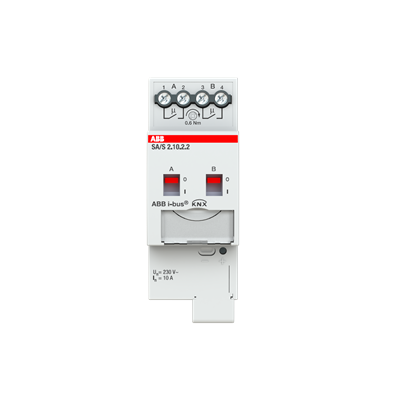

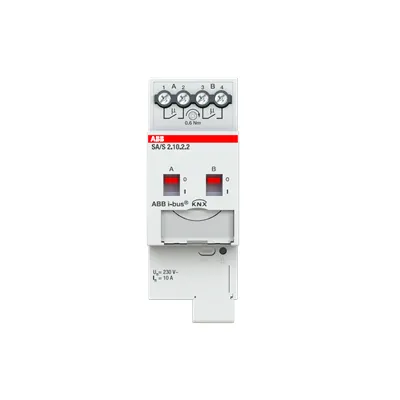

2CDG110257R0011
Part Number: 2CDG110257R0011
Product Information
Extended Description
2CDG110257R0011 ABB: The switch actuator uses potential free contacts to switch 2 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 10 A device is especially suited for loads with high surge currents e.g. flourescent lighting acc. EN 60669. The device is powered by KNX and requires no additional power supply.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SA/S x.10.2.2
Wiring Diagram
Connection diagram (.SVG) [XX] SA/S 2.10.2.2
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S 2.10.2.2
Contact Position Indication
ON / OFF
Number of Outputs
2
Number of LEDs
1
Maximum Number of Switching Outputs
2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Utilization Category
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation
Yes
Suitable for C-Load
No
Number of Batteries
0
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
10 A
Maximum Switching Current
10 A
Maximum Switching Power
2500 W
Power Loss
1.5 W
Color
light grey
Width in Number of Modular Spacings
2.0
Product Net Width
36 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.13 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 2MW
Replaced Product ID (OLD)
2CDG110155R0011
E-Number (Finland)
2814692
E-Number (Norway)
4545305
E-Number (Sweden)
1739895
E-Number (Switzerland)
405 663 025
ABB EcoSolutions
Yes
EcoSolutions Profile
EcoSolution Product Profile (.PDF) [EN] ABB i-bus© KNX Switch Actuators SA/S & SAH/S
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 37.7 %
Circular Design Principles Lifetime
Declaration KNX (.PDF) [EN] Declaration lifetime KNX products ABB
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Extended Product Lifetime
Product Durability | Product Modularity | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SA/S 2.x.2.2
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SA/S 2.10.2.x2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f244a133-7f6f-471f-9848-5f5f5fdef05a Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SA/S Standard
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SA/S 2.10.2.x2
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
