2CDG110260R0021
Part Number: 2CDG110260R0021
Product Information
Extended Description

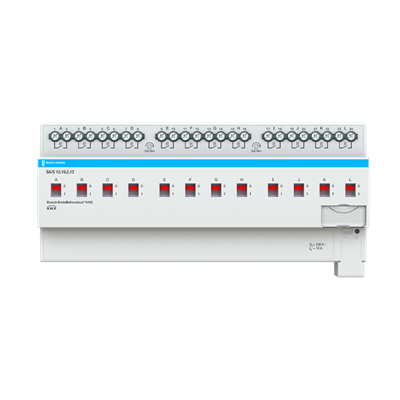

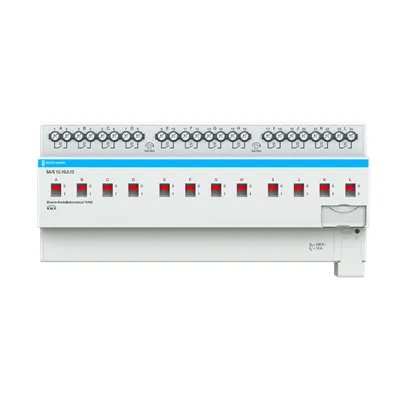

2CDG110260R0021 ABB: The switch actuator uses potential free contacts to switch 12 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 10 A device is especially suited for loads with high surge currents e.g. flourescent lightin acc. EN 60669. The device is powered by KNX and requires no additional power supply.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SA/S x.10.2.12
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] SA/S 12.10.2.12
Contact Position Indication
ON / OFF
Number of Outputs
12
Number of LEDs
1
Maximum Number of Switching Outputs
12
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Suitable for C-Load
No
Terminal Type
Bus Connection
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
10 A
Maximum Switching Current
10 A
Maximum Switching Power
2500 W
Load Type
Universal and LED Retrofit | LEDi/CFLi | Incandescent lamp | Halogen lamp, high voltage | Halogen lamp, low voltage | Fluorescent lamp
Power Loss
6.5 W
Color
light grey
Width in Number of Modular Spacings
12.0
Product Net Width
210 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.608 kg
Built-In Depth (t2)
64.5 mm
Replacement Product ID (NEW)
2CDG110260R0011
Replaced Product ID (OLD)
2CDG110158R0021
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SA/S 12.10.2.x2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
15755caa-03da-4f32-90b5-f1dcdcdca645 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SA/S Standard
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SA/S 12.10.2.x2
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
