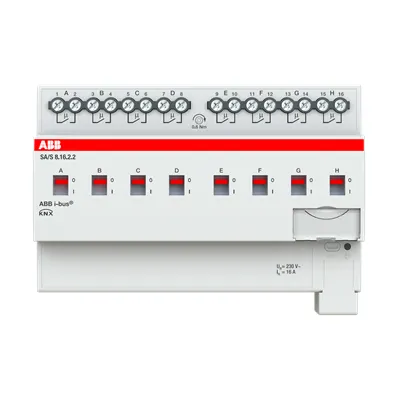

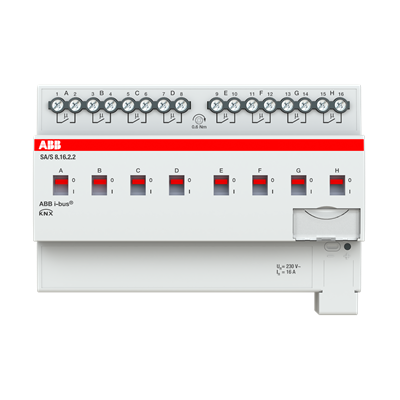

2CDG110263R0011
Part Number: 2CDG110263R0011
Product Information
Extended Description
2CDG110263R0011 ABB: The switch actuator uses potential free contacts to switch 8 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 16 A device is especially suited for resistive loads.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] SA/S x.16.2.2
Wiring Diagram
Connection diagram (.SVG) [XX] SA/S 8.16.2.2
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SA/S 8.16.2.2
Contact Position Indication
ON / OFF
Number of Outputs
8
Number of LEDs
1
Maximum Number of Switching Outputs
8
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Utilization Category
Non-inductive or slightly inductive loads, example: resistive furnaces, heaters (AC-1)
Manual Operation
Yes
Suitable for C-Load
No
Number of Batteries
0
Voltage Range
230 V AC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
230 V AC
Rated Current (In)
16 A
Maximum Switching Current
16 A
Maximum Switching Power
2500 W
Power Loss
8 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
140 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.406 kg
Built-In Depth (t2)
63.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
Replaced Product ID (OLD)
2CDG110161R0011
E-Number (Finland)
2814698
E-Number (Norway)
4545311
E-Number (Sweden)
1739949
E-Number (Switzerland)
405 665 085
ABB EcoSolutions
Yes
EcoSolutions Profile
EcoSolution Product Profile (.PDF) [EN] ABB i-bus© KNX Switch Actuators SA/S & SAH/S
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 33.6 %
Circular Design Principles Lifetime
Declaration KNX (.PDF) [EN] Declaration lifetime KNX products ABB
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Extended Product Lifetime
Product Durability | Product Modularity | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SA/S 8.x.2.2 & SA-M-8.x.2.x2
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] SA/S 8.16.2.x2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
0c06a879-7848-461a-b086-5b6399fd154d Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SA/S Standard
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] SA/S 8.16.2.x2
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
