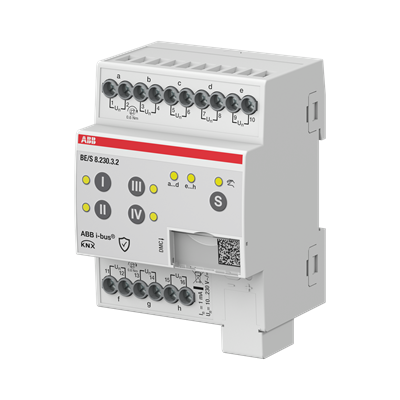

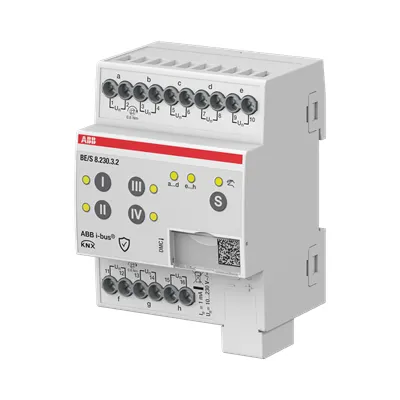

2CDG110280R0011
Part Number: 2CDG110280R0011
Product Information
Extended Description
2CDG110280R0011 ABB: Detects AC/DC signals in the voltage range from 10...230 V. The state of the input is dis-
played via yellow LEDs. The binary inputs enable detection of independent input signals.
The devices feature a manual operation pushbutton for each channel. The devices are pow-
ered via the ABB i-bus® and do not require an additional power supply. The devices support
KNX Data Secure.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] BE/S x.230.3.2
Wiring Diagram
Connection diagram Binary Input (.eps) [XX] BE/S 8.230.3.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [DE] BE/S x.y.3.2
Number of LEDs
7
Number of Digital Inputs
8
Number of Inputs
8
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Security Standard
KNX Data Secure
Voltage Range
10 ... 230 V AC/DC
Input Voltage (Uin)
10 ... 230 V
Input Voltage Type
AC/DC
Power Loss
0.25 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.143 kg
Built-In Depth (t2)
63.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
Replaced Product ID (OLD)
2CDG110093R0011
E-Number (Finland)
2815909
E-Number (Norway)
4544734
E-Number (Sweden)
1741017
E-Number (Switzerland)
405603225
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BE/S x.230.3.2
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) BE/S x.230.3.2
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
Object Classification Code
A
