2CDG110296R0011
Part Number: 2CDG110296R0011
Product Information
Extended Description

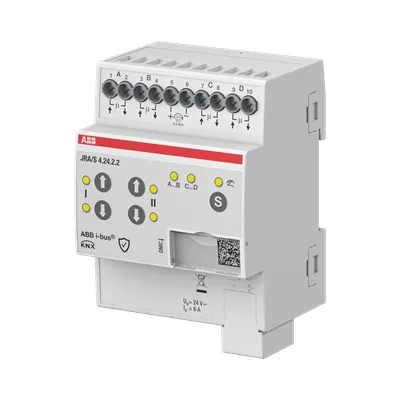

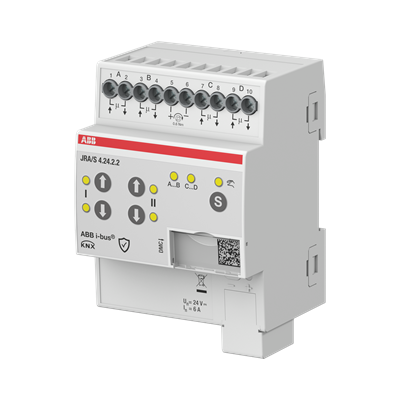

2CDG110296R0011 ABB: For the control of independent 24 V DC motors via ABB i-bus® KNX. The device is designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. Push-buttons are located at the front of the device to control the outputs e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected.
Instructions and Manuals
Installation and Operating Instructions (.PDF) JRA/S x.24.x.2
Wiring Diagram
Connection diagram Blind/Shutter Actuator (.eps) [XX] JRA/S 4.24.2.2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical data (.PDF) [EN] JRA/S x.x.2.2
Number of Outputs
4
Number of LEDs
8
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
Yes
Number of Batteries
0
Security Standard
KNX Data Secure
Current Type
DC
Rated Voltage (Ur)
24 V DC
Voltage Range
24 V
Maximum Switching Current
6 A
Maximum Switching Power
144 W
Power Loss
0.25 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.294 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815925
E-Number (Norway)
4545060
E-Number (Sweden)
1741035
E-Number (Switzerland)
405432135
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) JRA/Sx.24.2.2
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) JRA/Sx.24.2.2
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
Object Classification Code
A
