2CDG120005R0011
Part Number: 2CDG120005R0011
Product Information
Extended Description

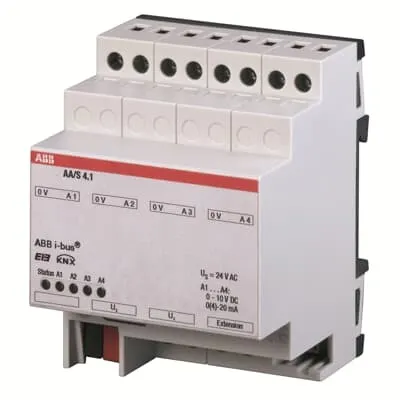

2CDG120005R0011 ABB: The Analogue Actuator has 4 analogue outputs and converts KNX-telegrams into analogue output signals. The outputs are software-parameterized for voltage or current signals. With the Analogue Actuator Module AAM/S the number of analogue outputs can be increased to 8 outputs. The device needs an external 24 V AC power supply, e.g. TS 25/12-24 C (2CSM251043R0811).
Instructions and Manuals
Installation and Operating Instructions (.PDF) AA/S4.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] AA/S4.1
Function
Analogue Actuator
Sub-Function
4-fold
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Number of Batteries
0
Terminal Type
Bus Connection
Voltage Range
0 ... 10 V DC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
0 ... 10 V DC
Maximum Switching Current
0.02 A
Power Loss
0.15 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
69.5 mm
Product Net Weight
0.18 kg
Replacement Product ID (NEW)
2CDG110202R0011
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) AA/S4.1
ETIM 9
EC001096 - Analogue actuator for bus system
eClass
V11.0 : 27143109
Object Classification Code
A
